Space-Saving Hydraulic Liftgate for Trucks

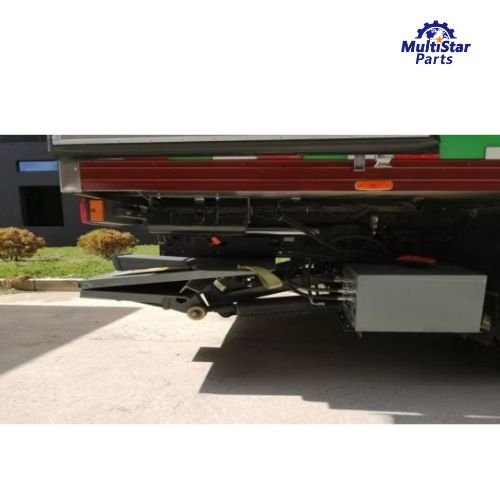

A tuck-away tail lift (also called tuckunder tail lift or folding tail lift) is a hydraulic platform that folds and slides completely under the truck chassis when not in use. Unlike cantilever tail lifts that fold vertically against the rear door, tuck-away lifts disappear entirely under the vehicle.
This design provides:
✅ Ideal for urban delivery – frequent stops, tight spaces
✅ Full rear access – rear doors open completely
✅ Space-saving – no platform blocking the rear
✅ Clean appearance – hidden when not in use
Available Models (Tuck-Away Tail Lifts for Sale)Product Specifications (MT-TA Tuck-Away Series)
| Model | Platform Material | Capacity (kg) | Max Lifting Height (mm) | Platform Size (W x L, mm) | Voltage | Motor Power (kW) | Pump Displacement |
|---|---|---|---|---|---|---|---|
| MT-TA-05/080 | Steel | 500 | 800 | 1600 x 1200 (customizable) | 12/24 | 2.0 | 1.2 |
| MT-TA-05/100 | Steel | 500 | 1000 | 1600 x 1200 (customizable) | 12/24 | 2.0 | 1.2 |
| MT-TA-10/095 | Steel or Aluminum | 1000 | 950 | 1800 x 2000 (customizable) | 12/24 | 2.0 | 1.7 |
| MT-TA-10/105 | Steel or Aluminum | 1000 | 1050 | 1800 x 2000 (customizable) | 12/24 | 2.0 | 1.7 |
| MT-TA-10/120 | Steel or Aluminum | 1000 | 1200 | 1800 x 2000 (customizable) | 12/24 | 2.0 | 1.7 |
| MT-TA-15/105 | Steel or Aluminum | 1500 | 1050 | 2000 x 2000 (customizable) | 24 | 2.0 | 2.5 |
| MT-TA-15/120 | Steel or Aluminum | 1500 | 1200 | 2000 x 2000 (customizable) | 24 | 2.0 | 2.5 |
| MT-TA-15/145 | Steel or Aluminum | 1500 | 1450 | 2000 x 2000 (customizable) | 24 | 2.0 | 2.5 |
| MT-TA-20/120 | Steel | 2000 | 1200 | 2100 x 2100 (customizable) | 24 | 3.0 | 3.2 |
| MT-TA-20/145 | Steel | 2000 | 1450 | 2100 x 2100 (customizable) | 24 |
Applications
| Industry | Why Tuck-Away? |
|---|---|
| Urban delivery | Frequent stops – quick deploy/store |
| Postal services | Need full rear door access |
| Food & beverage | Multiple deliveries per route |
| Retail distribution | Tight loading docks |
| Pharmaceuticals | Temperature-controlled – fast access |
| E-commerce logistics | High stop density |
Application of Truck Tailf Lifst
